Automotive
Our Automotive families – GOLD, SILVER and DISCOVERY – are specially selected units that have their origins in Scan-Speak’s well-known home audio speakers and which have been improved and optimized for high end automotive use.
The Automotive families enable audiophiles to experience the same – TRUE TO LIVE – sound in their vehicle as they enjoy from their high end home audio system. Care has been taken to ensure that these drivers can withstand the at times harsh conditions in an automotive environment and at the same time continue to provide excellent sound when you are on the move.
The Automotive families enable audiophiles to experience the same – TRUE TO LIVE – sound in their vehicle as they enjoy from their high end home audio system. Care has been taken to ensure that these drivers can withstand the at times harsh conditions in an automotive environment and at the same time continue to provide excellent sound when you are on the move.
-
- Very wide Frequency Range
- Coated NRSC Fibre Glass Cone (patent)
- Compact Size, Neo magnet, Alu. Chassis
- High Sensitivity 88dB / 2,83V
- SBR Rubber Surround
- Copper Cap on Pole Piece
Size: 10 cm Fs: 110 Hz Re: 3.2 Ω Qt: 0.53 Sensitivity: 88 dB VAS: 1.3 ltr. Sd: 36 cm² Bl: 3.2 Tm -
- Sliced Paper Cone
- Compact Neodymium Magnet System
- Low-Loss Linear Suspension
- Robust Alu Chassis
- High Grade Neo Magnet
- Protective Magnet Cup with Grill over Pole VentSize: 11 cm Fs: 68 Hz Re: 3.3 Ω Qt: 0.31 Sensitivity: 90 dB VAS: 2.7 ltr. Sd: 50 cm² Bl: 5.5 Tm -
- Optimized for Car Use
- Aluminium Die cast Basket
- Black Coated NRSC Fibre Glass Cone
- EURO-DIN mounting flange
- Shallow mounting dimention
- Low Loss Suspension, with Rubber SurroundSize: 16 cm Fs: 55 Hz Re: 3 Ω Qt: 0.48 Sensitivity: 90.5 dB VAS: 17.9 ltr. Sd: 138 cm² Bl: 4.8 Tm -
- Patented Symmetrical Drive Motor Design
- Roboust Die cast Alu Chassis
- Low Damping SBR Rubber Surround
- Low-Loss linear suspension
- Sliced Cone (Controls Cone Breakups)
- Compact powerful Neo magnetSize: 16 cm Fs: 51 Hz Re: 3.5 Ω Qt: 0.59 Sensitivity: 88 dB VAS: 12.6 ltr. Sd: 123 cm² Bl: 5.2 Tm -
- Die Cast Housing & Face Plate
- High Grade Compact Neo magnet System
- Low Damping SBR Rubber Surround
- Low-Loss linear suspension
- Patented Symmetrical Drive Motor Design
- Robust Die cast Alu ChassisSize: 16 cm Fs: 36 Hz Re: 3.1 Ω Qt: 0.35 Sensitivity: 90 dB VAS: 24 ltr. Sd: 123 cm² Bl: 5.5 Tm -

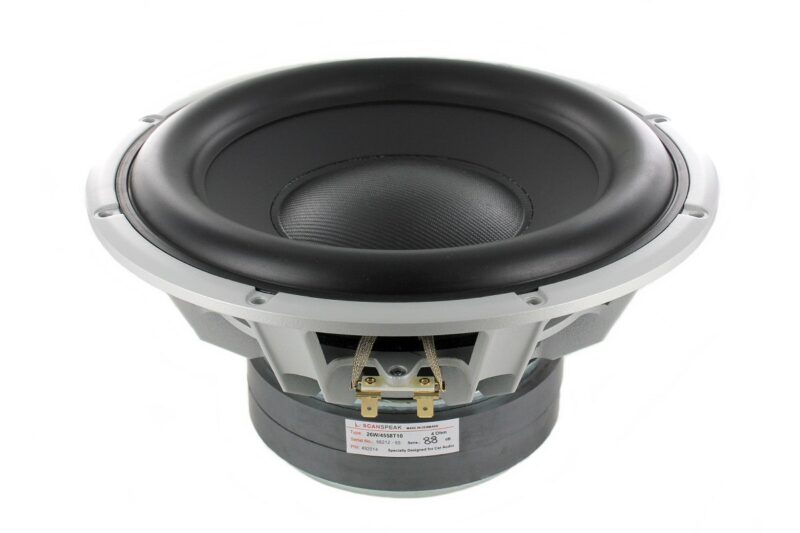

- 56mm Peak Excursion, 25mm Linear
- Low Resonance Freq. 21Hz
- Magnet System w. Alu Ring
- High Output 88dB @ 2,83V
- Anodized Alu Cone, Fibre Glass Dust Cap
- Die cast Alu Chassis vented below spiderSize: 26 cm Fs: 21 Hz Re: 2.6 Ω Qt: 0.31 Sensitivity: 88 dB VAS: 95 ltr. Sd: 352 cm² Bl: 10.5 Tm -

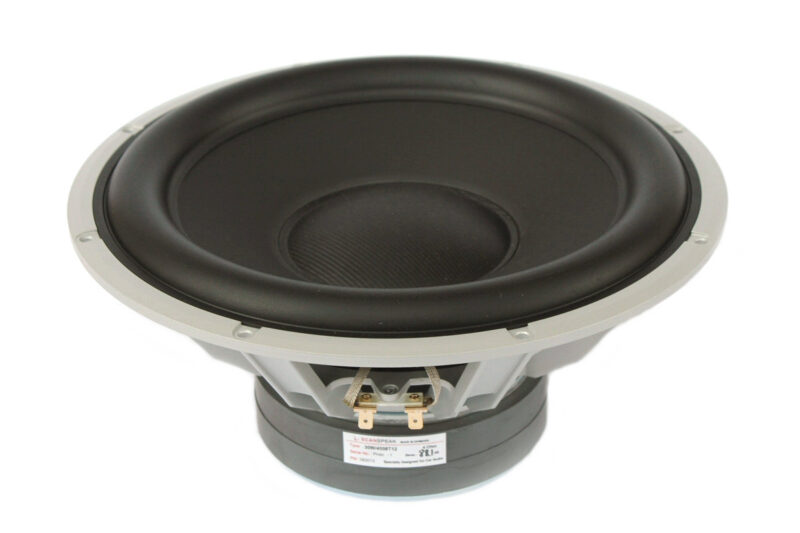

- 56mm Peak Excursion, 25mm Linear
- Low Resonance Freq. 17Hz
- Magnet System w. Alu Ring
- High Output 89dB @ 2,83V
- Anodized Alu Cone, Fibre Glass Dust Cap
- Die cast Alu Chassis vented below spiderSize: 30 cm Fs: 17 Hz Re: 2.6 Ω Qt: 0.32 Sensitivity: 89 dB VAS: 197 ltr. Sd: 466 cm² Bl: 10.5 Tm -

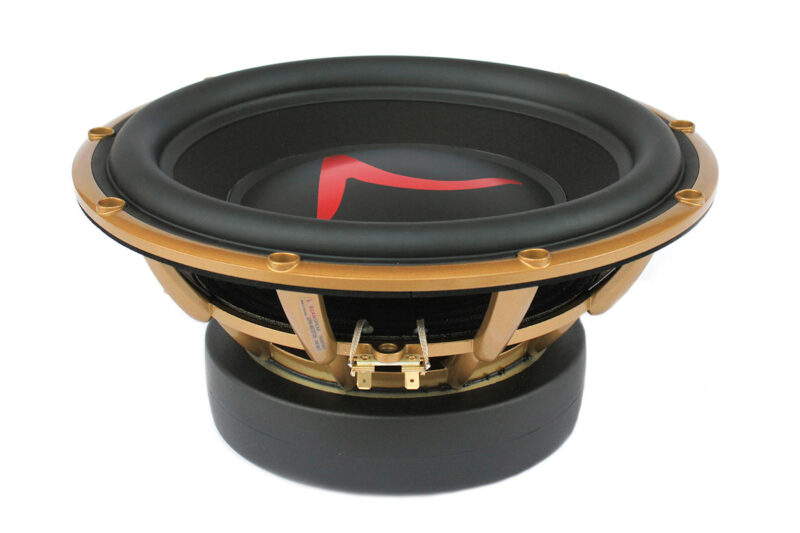

- Paper sandwich cone with patented foam filling
- Extreme long linear excursion (+/-14mm)
- Patented Symmetrical Drive motor
- 3" Voice coil, Titanium former, paper reinforced
- Large dustcap w. logo
- Stiff robust die cast alu chassisSize: 32 cm Fs: 17 Hz Re: 3.1 Ω Qt: 0.32 Sensitivity: 89 dB VAS: 180 ltr. Sd: 526 cm² Bl: 12.5 Tm -

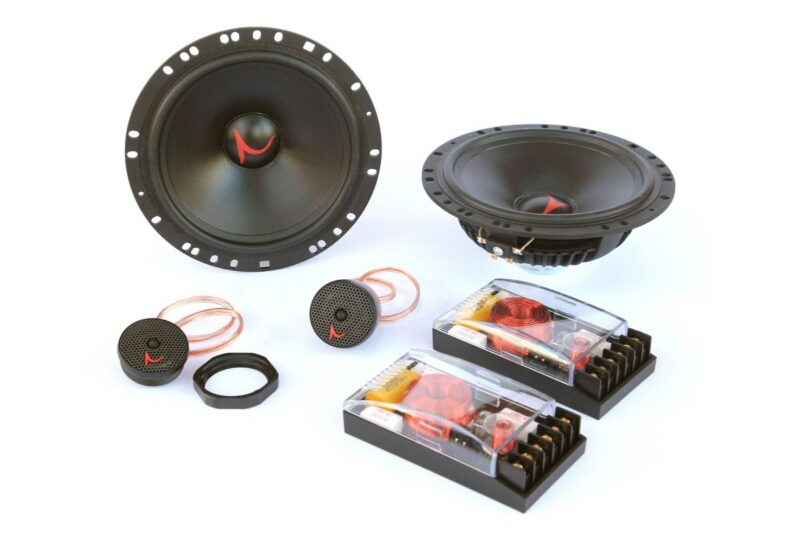

- 2 x 130mm Midwoofers - EURO-DIN mounting
- 2 x 19mm Ring Dome Tweeters
- 2 x 2-Way Crossovers
- Alu Die cast Chassis
- Shallow Mounting Dimentions
- Patented NRSC Fibre Glass ConeSize: 15 cm Fs: 80 Hz Re: 3 Ω Qt: 0.57 Sensitivity: 88 dB VAS: ltr. Sd: 80 cm² Bl: 4.8 Tm -
- 1" Textile Dome Diamphragm
- Patented Symmetrical Drive (SD-2) motor
- Patented Symmetrical Drive (SD-2) motor
- Large Roll Surround f. Wide Dispersion
- Sound Transparant Protective Grill
- Die Cast Housing & Face PlateSize: 2.6 cm Fs: 700 Hz Re: 3 Ω Qt: 1.15 Sensitivity: 89 dB VAS: 0.01 ltr. Sd: 7 cm² Bl: 1.7 Tm -
- Bespoke manufactured Thin Ply Carbon Fiber diaphragm
- Large Roll Surround f. wide dispersion
- High Power Patented SD-2 magnet system
- Compact non-Resonant Alu Rear Chamber
- Die Cast housing & Face Plate
- Sound Transparent Protective GrillSize: 2.6 cm Fs: 700 Hz Re: 2.9 Ω Qt: 0.54 Sensitivity: 91 dB VAS: 0.01 ltr. Sd: 7 cm² Bl: 2.4 Tm -
- 3/4" Ring Dome tweeter
- Compact mounting dimentions
- Flange and Nut for doorpanel mounting
- Optimized for Car use
- Wedge House for dashboard mountingSize: 1.9 cm Fs: 1000 Hz Re: 2.7 Ω Qt: 1.61 Sensitivity: 87 dB VAS: ltr. Sd: 3.8 cm² Bl: 1.4 Tm -
- 1" Ring Dome Diaphragm
- High Power Patented SD-2 magnet system
- Non Resonant Alu Rear Chamber
- Non Resonant Alu Rear Chamber
- Sound Transparant Protective Grill
- Die Cast Housing & Face PlateSize: 2.6 cm Fs: 630 Hz Re: 3 Ω Qt: 0.86 Sensitivity: 90 dB VAS: 0.01 ltr. Sd: 5.6 cm² Bl: 2.4 Tm -
- 1" Ring Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Non Resonant Alu Rear Chamber
- Patented Phase Plug Design
- Sound Transparant Protective Grill
- Die Cast Housing & Face PlateSize: 2.6 cm Fs: 625 Hz Re: 3 Ω Qt: 1.14 Sensitivity: 87.5 dB VAS: 0.01 ltr. Sd: 5.6 cm² Bl: 1.7 Tm
